Battery Charging Module

-by Maninder Bir Singh Gulshan

Seeed Studio Fusion PCB Assembly Service takes care of the entire fabrication process from PCB manufacturing parts sourcing, assembly, and testing services, so you can be sure that they are getting a quality product. After gauging market interest and verifying a working prototype, Seeed Propagate Service can help you bring the product to market with professional guidance and a strong network of connections.

Features

• Linear Charge Management Controller:

- Integrated Pass Transistor

- Integrated Current Sense

- Reverse Discharge Protection

• High-Accuracy Preset Voltage Regulation: + 0.75%

• Four Voltage Regulation Options: - 4.20V, 4.35V, 4.40V, 4.50V

• Programmable Charge Current: 15 mA to 500 mA

• Selectable Preconditioning: - 10%, 20%, 40%, or Disable

• Selectable End-of-Charge Control: - 5%, 7.5%, 10%, or 20%

• Charge Status Output - Tri-State Output - MCP73831 - Open-Drain Output - MCP73832

• Automatic Power-Down

• Thermal Regulation

• Temperature Range: -40°C to +85°C

• Packaging: - 8-Lead, 2 mm x 3 mm DFN - 5-Lead, SOT-23

For the Gerber File, Follow and message us on

LinkedIn: https://www.linkedin.com/in/technical-avant-garde-2761261b0/

Full Process is shown using Screenshots Step-wise

Now we have got the PCB design and it’s time to order the PCB’s. For that, you just have to go to JLCPCB, and click on the “QUOTE NOW” button. JLCPCB is also a sponsor of this project. JLCPCB (ShenzhenJLC Electronics Co., Ltd.), is the largest PCB prototype enterprise in China and a high-tech manufacturer specializing in quick PCB prototype and small-batch PCB production.

You can order a minimum of 5 PCBs for just $2. To get the PCB manufactured, upload the Gerber file you downloaded in the last step. Upload the.zip file or you can also drag and drop the Gerber files. After uploading the zip file, you’ll see a success message at the bottom of the file that is successfully uploaded. You can review the PCB in the Gerber viewer to make sure everything is good.

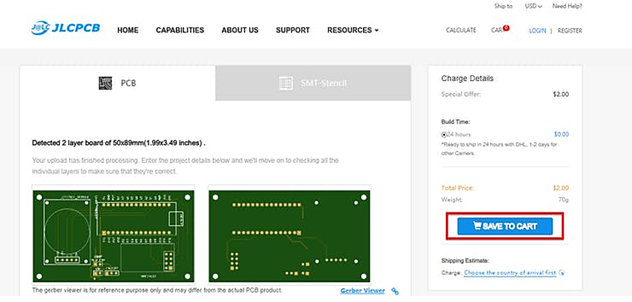

You can view both the top and bottom of the PCB. After making sure our PCB looks good, we can now place the order at a reasonable price. You can order 5 PCBs for just $2 but if it’s your first order then you can get 10 PCBs for $2. To place the order, click on the “SAVE TO CART” button.

My PCBs took 2 days to get manufactured and arrived within a week using the DHL delivery option. PCBs were well packed and the quality was really good.
