USB Current Sensor Measuring Module

Committed to providing one-stop electronic hardware services for over a decade, Seeed Fusion has the expertise and engineering insight to deliver streamlined PCB assembly at low costs and is equipped with a wide range of value-added services and capabilities. Check out their website to know about their manufacturing capabilities and service.
To available Seeed Studio Sevices: https://www.seeedstudio.com/prototype-pcb-assembl...

USB 2.0 A to C Cables

INA290A1 Ultra-Precise Current Sense Amplifier

• Operating supply range (VS): 2.7 V to 20 V
• Common-mode input range: VS to +120 VGain: 20V/V
• Gain error: ±0.1% (maximum)
• Offset voltage: ±12 μV (maximum)
• High bandwidth: 1.1 MHzSlew rate: 2 V/μs
• Quiescent current: 370 μA
• Operating temperature range: -40 °C to +125 °C

0.05 Ohm Sense Resistor: 0.2W maximum

Current sensing range: 2A maximum

Voltage drop at 2A: 0.1V

For the Gerber File, Follow and message us on

YouTube: https://www.youtube.com/channel/UC8mQvRi15t0JOyzw6...

LinkedIn: https://www.linkedin.com/in/technical-avant-garde-...

Instagram: https://www.instagram.com/technical_avantgarde/

Full Process is shown using Screenshots Step-wise.

Now we have got the PCB design and it’s time to order the PCB’s. For that, you just have to go to JLCPCB, and click on the “QUOTE NOW” button. JLCPCB is also a sponsor of this project. JLCPCB (ShenzhenJLC Electronics Co., Ltd.), is the largest PCB prototype enterprise in China and a high-tech manufacturer specializing in quick PCB prototype and small-batch PCB production.

You can order a minimum of 5 PCBs for just $2. To get the PCB manufactured, upload the Gerber file you downloaded in the last step. Upload the.zip file or you can also drag and drop the Gerber files. After uploading the zip file, you’ll see a success message at the bottom of the file that is successfully uploaded. You can review the PCB in the Gerber viewer to make sure everything is good.

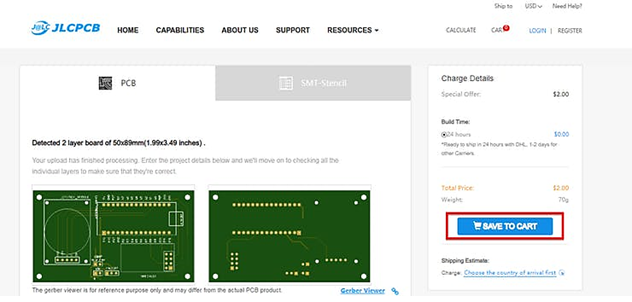

You can view both the top and bottom of the PCB. After making sure our PCB looks good, we can now place the order at a reasonable price. You can order 5 PCBs for just $2 but if it’s your first order then you can get 10 PCBs for $2. To place the order, click on the “SAVE TO CART” button.

My PCBs took 2 days to get manufactured and arrived within a week using the DHL delivery option. PCBs were well packed and the quality was really good.
