Ultrasonic Radar System

The project is a radar system that can detect objects from up to 200 cm away from the sensor, with a full sweeping motor to enhance the radius the radar can detect.

1. Arduino Uno
2. SG90 Servo
3. Ultrasonic Sensor - SR04
4. I2C Translator
5. LCD Screen

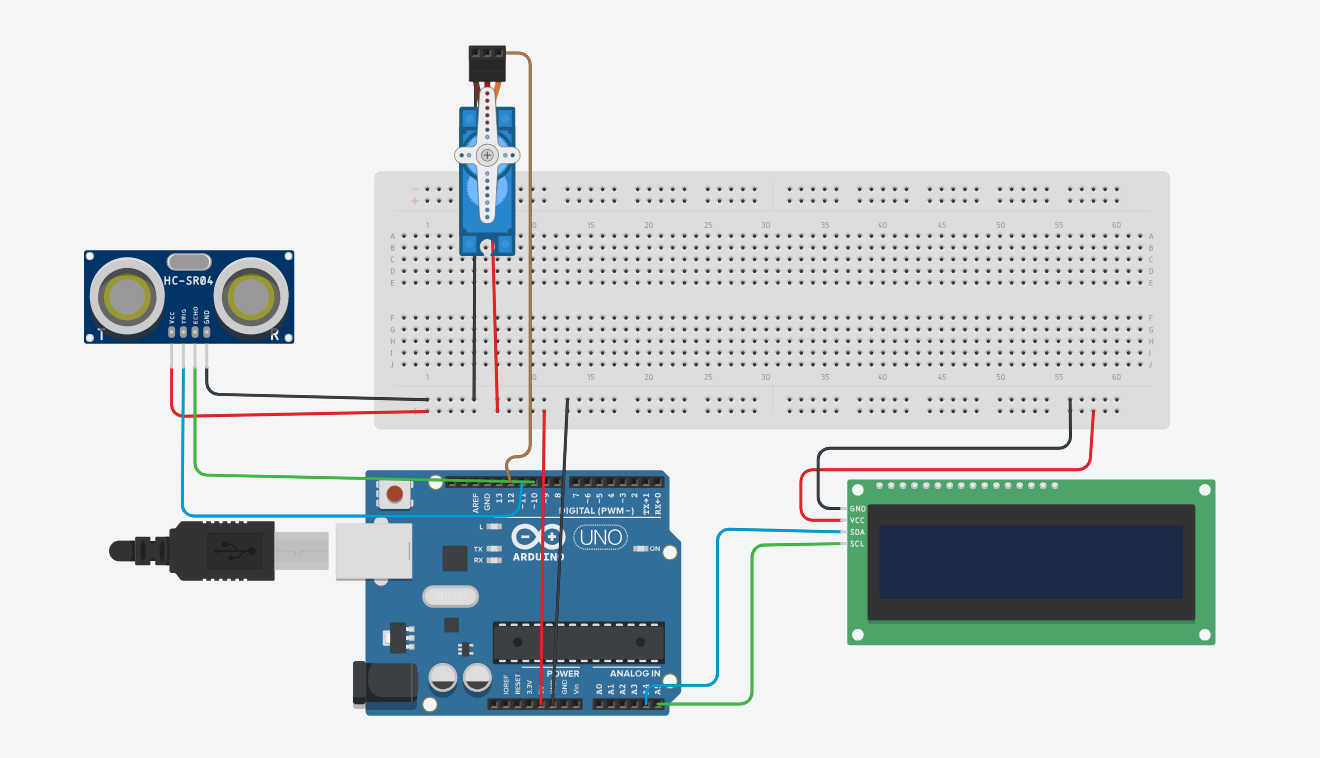

Create an online circuit on TinkerCad that outlines the majority of the components needed.

1. Connect 5V pin and GND pin to the red (+) and blue (-) rails of the breadboard respectively
2. Connect the VCC and GND of both the Servo Motor and the Ultrasonic Sensor into the Red and Blue rails
3. Connect the Servo Motor's control wire into the Digital 12 pin
4. Connect the trigPin of the Ultrasonic sensor into the Digital 11 pin
5. Connect the echoPin of the Ultrasonic Sensor into the Digital 10 pin
6. Connect the VCC and GND of the LCD screen directly into the 5V and GND pin of the Arduino
7. Wire the SDA into A4, SCL into A5

Essentially, the circuit couldn't support the current spikes caused by the servo motor (500 mA - 800 mA), so we inserted the MB-102 as a second power provider.

After testing, we found out that the MB-102 causes voltage dips which stops all components from finishing their task, therefore we wired the LCD screen straight into the Arduino Uno and removed the MB-102 completely.

1. Test code for Servo Motor

#include <Servo.h>

Servo myServo;

int pos = 0; // current position

void setup() {

myServo.attach(12); // signal pin

}

void loop() {

// Move 0 → 180 smoothly

for(pos = 0; pos <= 180; pos++) {

myServo.write(pos);

delay(15); // small delay = smooth motion

}

delay(500);

// Move 180 → 0 smoothly

for(pos = 180; pos >= 0; pos--) {

myServo.write(pos);

delay(15);

}

delay(500);

}

1. Test code for Ultrasonic Sensor:

const int trigPin = 11;

const int echoPin = 10;

void setup() {

Serial.begin(9600);

pinMode(trigPin, OUTPUT);

pinMode(echoPin, INPUT);

}

void loop() {

digitalWrite(trigPin, LOW);

delayMicroseconds(2);

digitalWrite(trigPin, HIGH);

delayMicroseconds(10);

digitalWrite(trigPin, LOW);

long duration = pulseIn(echoPin, HIGH);

float distance = duration * 0.034 / 2;

Serial.print("Distance: ");

Serial.print(distance);

Serial.println(" cm");

delay(300);

}

Go to Sketch --> Include Library --> Manage Libraries

Then search LiquidCrystal_I2C by Frank de Brabander

Press install --> Reopen Arduino IDE

1. Test code for I2C LCD:

#include <Wire.h>

#include <LiquidCrystal_I2C.h>

LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {

// Initialize I2C first

Wire.begin();

// Initialize LCD

lcd.init();

lcd.backlight();

lcd.clear();

// Display message

lcd.setCursor(0, 0);

lcd.print("LCD Test");

lcd.setCursor(0, 1);

lcd.print("OK");

}

void loop() {

// Nothing

}

#include <Servo.h>

#include <Wire.h>

#include <LiquidCrystal_I2C.h>

// -------- PINS --------

const int trigPin = 11;

const int echoPin = 10;

const int servoPin = 12;

// -------- OBJECTS --------

Servo myServo;

LiquidCrystal_I2C lcd(0x27, 16, 2);

// -------- SETTINGS --------

const int DETECTION_THRESHOLD = 30; // Changed to 30cm

void setup() {

// Ultrasonic

pinMode(trigPin, OUTPUT);

pinMode(echoPin, INPUT);

// Serial (for debugging)

Serial.begin(9600);

// Servo

myServo.attach(servoPin);

// LCD

Wire.begin();

lcd.init();

lcd.backlight();

lcd.clear();

lcd.setCursor(0, 0);

lcd.print("Radar Starting");

delay(2000);

lcd.clear();

}

void loop() {

// -------- SWEEP 0 → 180 --------

for(int pos = 0; pos <= 180; pos++) {

myServo.write(pos);

float distance = measureDistance();

displayData(distance);

delay(15);

}

delay(300);

// -------- SWEEP 180 → 0 --------

for(int pos = 180; pos >= 0; pos--) {

myServo.write(pos);

float distance = measureDistance();

displayData(distance);

delay(15);

}

delay(300);

}

// -------- FUNCTION: MEASURE DISTANCE --------

float measureDistance() {

digitalWrite(trigPin, LOW);

delayMicroseconds(2);

digitalWrite(trigPin, HIGH);

delayMicroseconds(10);

digitalWrite(trigPin, LOW);

long duration = pulseIn(echoPin, HIGH, 30000);

float distance = duration * 0.034 / 2;

return distance;

}

// -------- FUNCTION: DISPLAY DATA --------

void displayData(float distance) {

// Serial output (for debugging)

Serial.print("Distance: ");

Serial.print(distance);

Serial.println(" cm");

// LCD display

lcd.clear();

// Line 1: Distance

lcd.setCursor(0, 0);

lcd.print("Dist:");

lcd.print(distance);

lcd.print("cm ");

// Line 2: Detection Status

lcd.setCursor(0, 1);

if(distance > 0 && distance < DETECTION_THRESHOLD) {

lcd.print("Object Detected!");

}

else {

lcd.print("No Object ");

}

}
